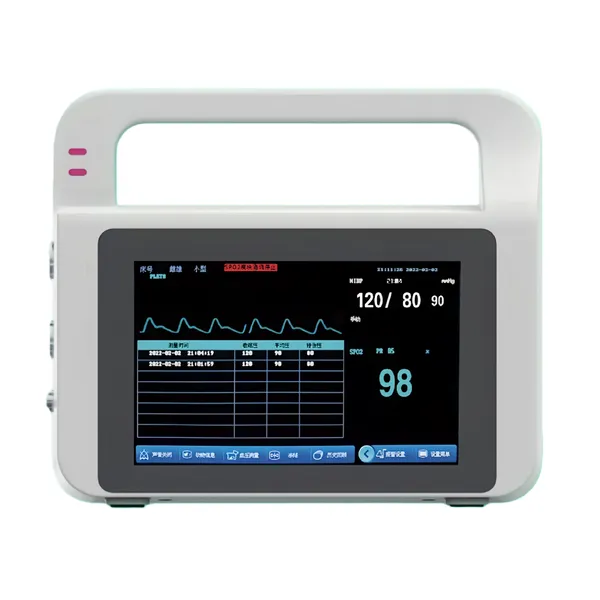

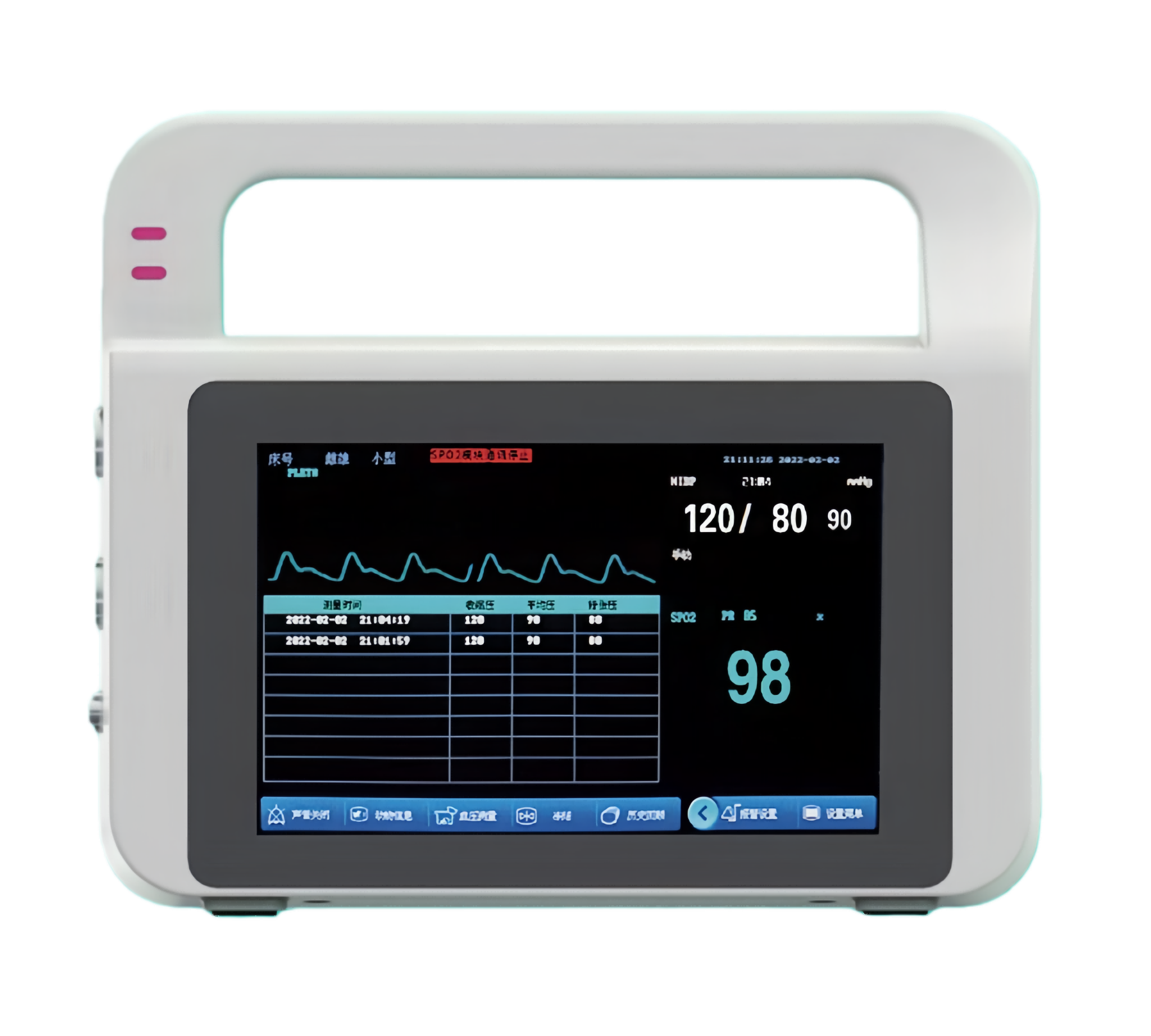

5-Inch Vital Signs Monitor

Vetlux VLVSM01 Vet Vital Signs Monitor

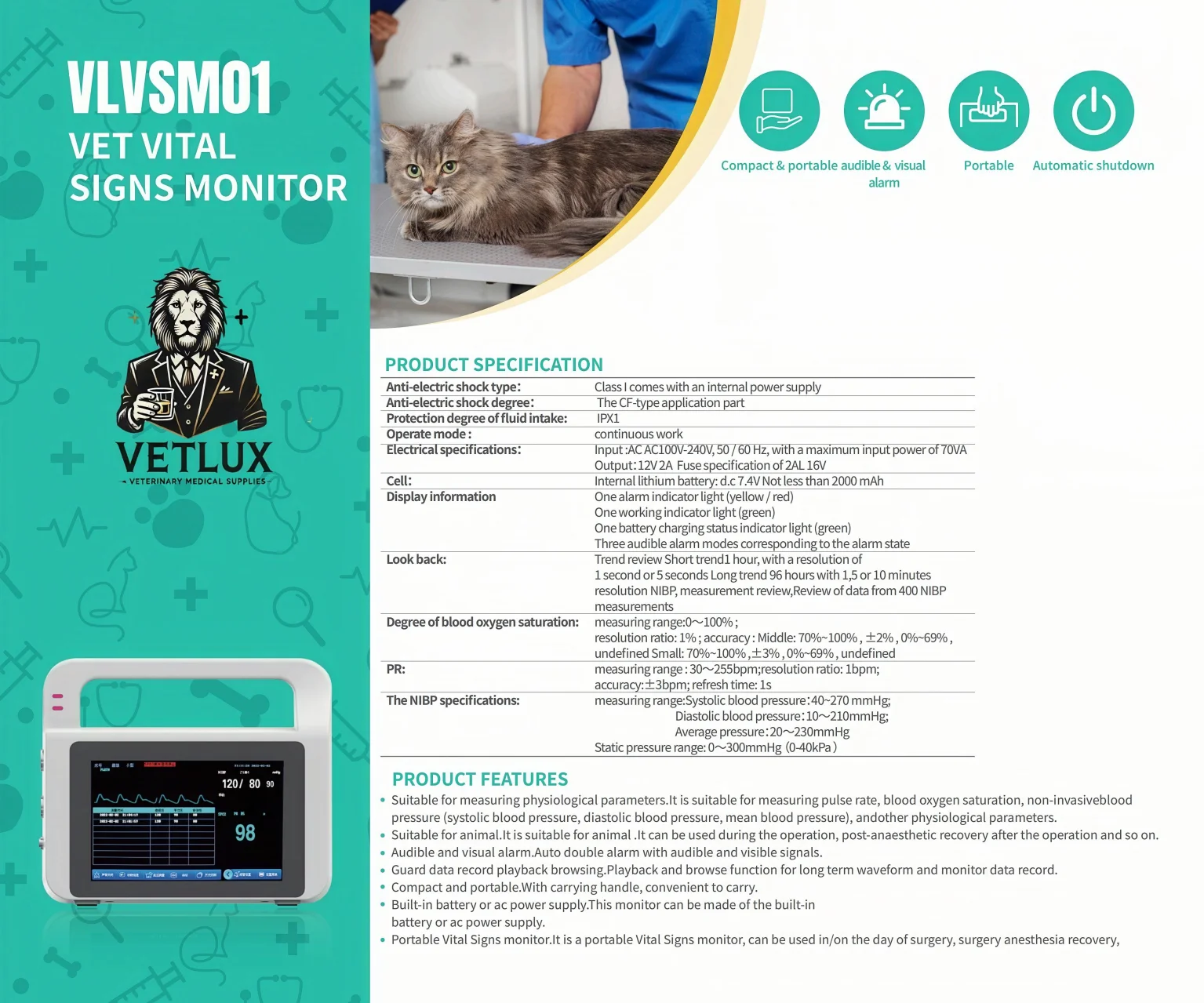

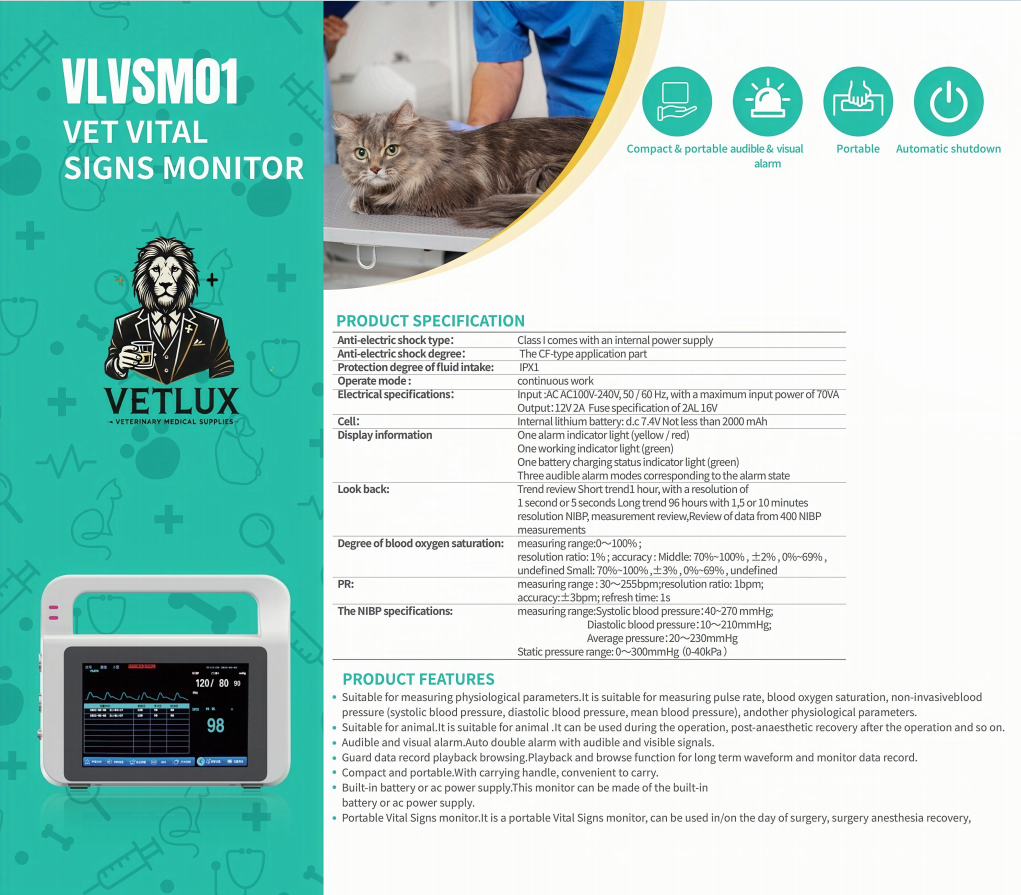

Product Specification

Safety & Operation: Class I anti-electric shock (internal power supply), IPX1 fluid intake protection, continuous work mode.

Electrical & Battery: Input AC100-240V/50-60Hz (max 70VA), output 12V/2A; built-in lithium battery ≥2000mAh.

Monitoring Parameters:

SpO2: 0-100% (70-100% ±2% for middle pets, ±3% for small pets; 0-69% undefined).

PR: 30-255bpm (±3bpm, resolution 1bpm).

NIBP: Systolic 40-270mmHg, Diastolic 10-210mmHg, Average 20-230mmHg; Static Pressure 0-300mmHg (0-40kPa).

Data Review: Trend review (1h short/96h long), 400-group NIBP data review; 3 audible alarm modes.

Dimensions & Design: Compact with carrying handle, equipped with multi-functional indicators (alarm, working, battery status).

Product Features

Application Scope: Measures pulse rate, SpO2, NIBP, etc.; suitable for animal surgery, post-anesthetic recovery, and routine monitoring.

Alarm & Data Management: Audible-visual double alarm; supports long-term waveform and data record playback/browsing.

Portability & Power: Lightweight with carrying handle, supports built-in battery or AC power supply, ideal for on-the-go veterinary use.
