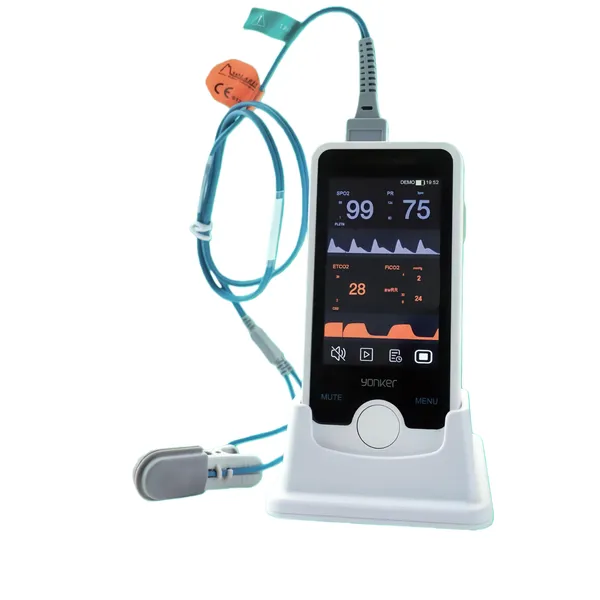

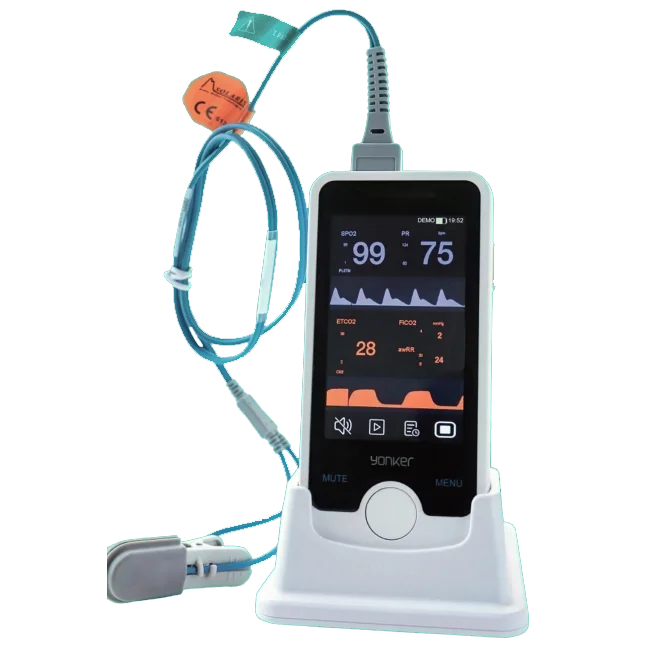

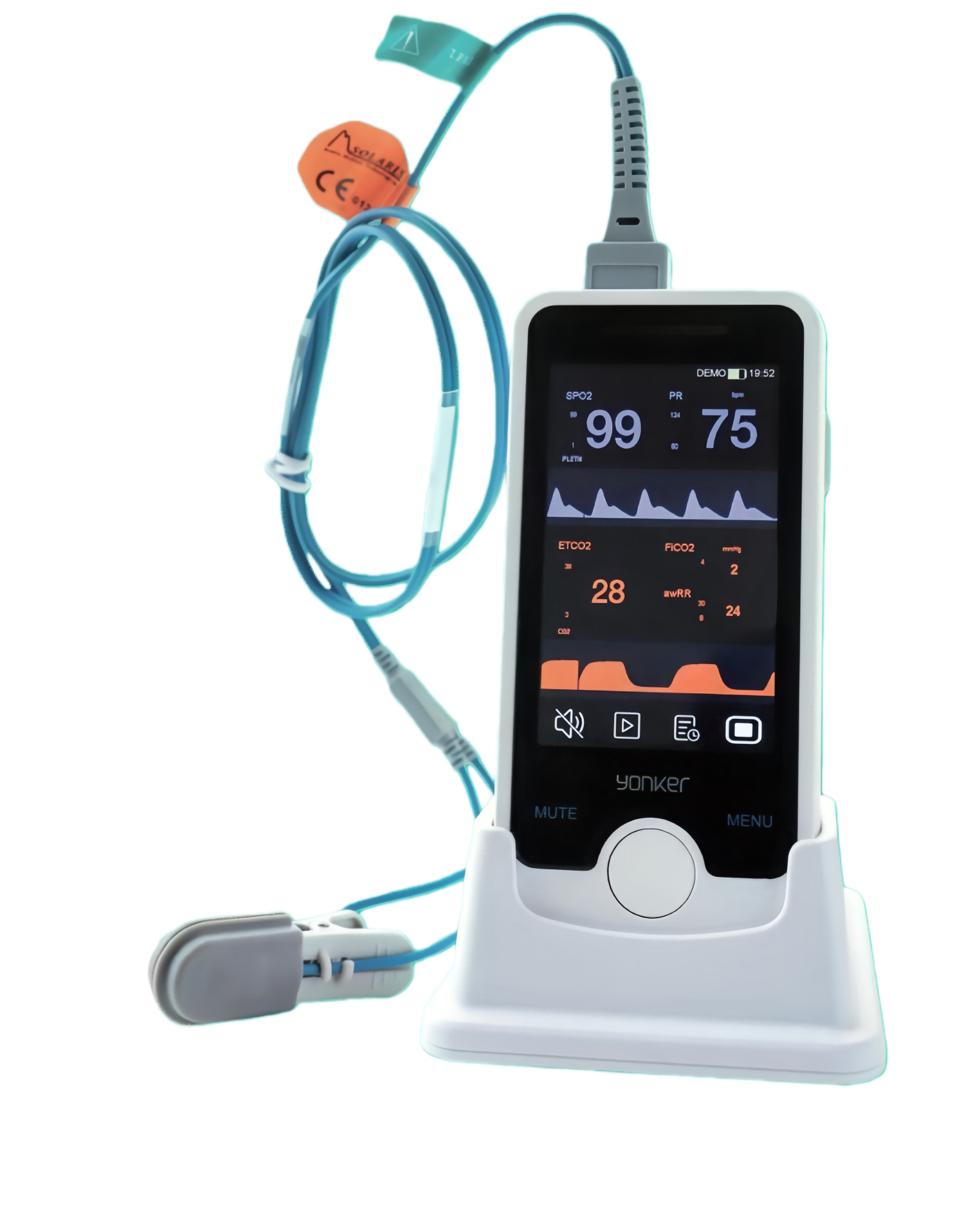

Handheld Vital Signs Monitor

Vetlux VLVSM02 Vet Vital Signs Monitor

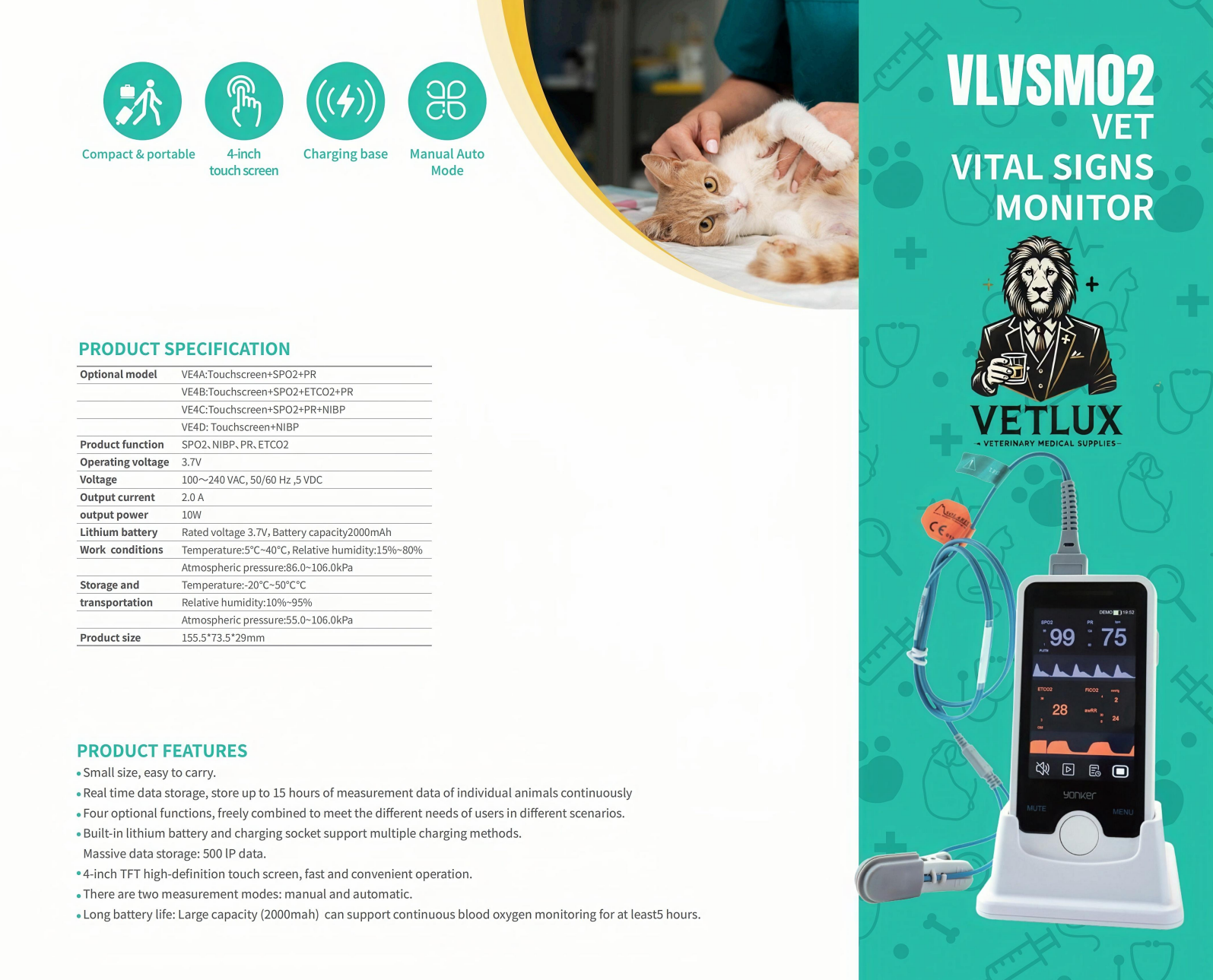

Product Specification

Optional Models:

VE4A: Touchscreen + SPO2 + PR

VE4B: Touchscreen + SPO2 + ETCO2

VE4C: Touchscreen + SPO2 + PR + NIBP

VE4D: Touchscreen + NIBP

Functions: SPO2, NIBP, PR, ETCO2

Power Supply:

Operating voltage: 3.7V

Input: 100-240 VAC, 50/60Hz; Output: 5 VDC, 2.0A, 10W

Lithium battery: 3.7V, 2000mAh

Environment:

Working: Temperature 5-40℃, RH 15%-80%, Atmospheric Pressure 86.0-106.0kPa

Storage/Transportation: Temperature -20-50℃, RH 10%-95%, Atmospheric Pressure 55.0-106.0kPa

Dimensions: 155.5×73.5×29mm

Product Features

Portability & Design: Compact and easy to carry, equipped with a charging base.

Display & Operation: 4-inch TFT high-definition touch screen, enabling fast and convenient operation.

Data Storage: Real-time data storage (up to 15 hours of continuous measurement data per animal) and massive storage capacity (500 groups of data).

Functional Combination: Four optional functions, freely combinable to meet different user needs in various scenarios.

Battery & Endurance: Built-in lithium battery with multiple charging methods; 2000mAh battery supports continuous blood oxygen monitoring for at least 5 hours.

Measurement Modes: Manual and automatic modes available, suitable for different veterinary clinical operations.
