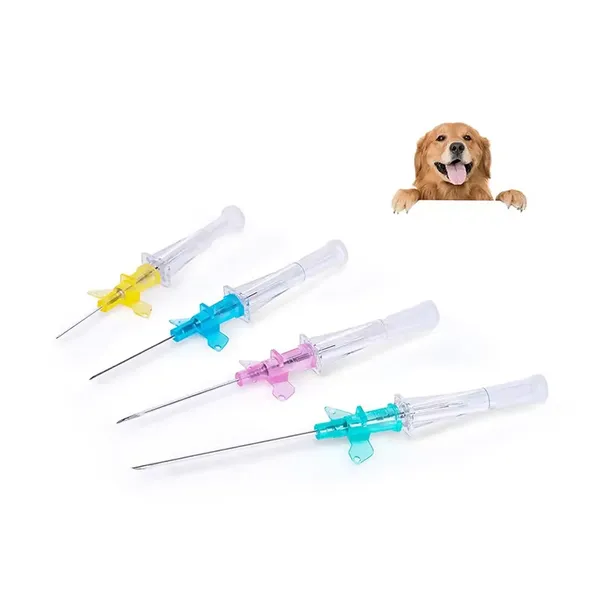

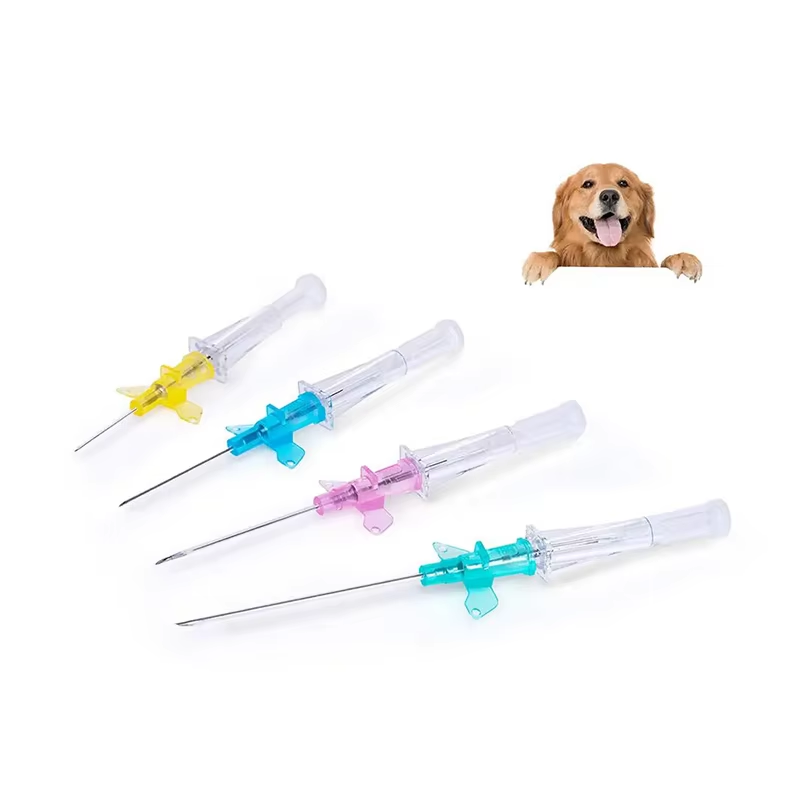

IV Cannula With Heparin Cap Winged

VETLUX Veterinary Premium IV Cannula

Formula: Soft PU tubing with sharp back-cut bevel needle, engineered for veterinary intravenous access.

Primary Use: Establishes intravenous access in animals for fluid therapy, medication delivery, and diagnostic sampling.

Key Benefit: Soft. Sharp. Safe.—balances patient comfort with precise, secure IV placement.

Specifications & Features:

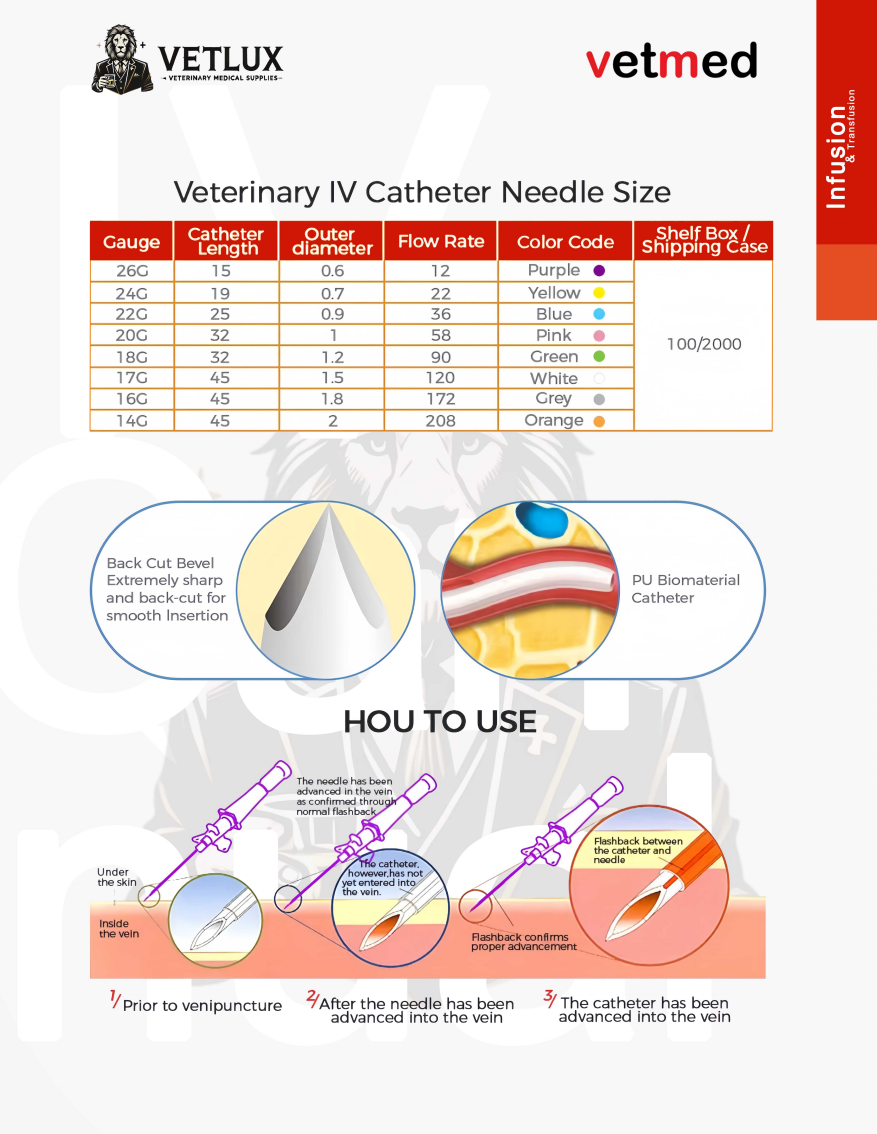

Sizes (Gauge, Length, Outer Diameter, Flow Rate, Color Code): 26G (15mm, 0.6mm, 12, Purple), 24G (19mm, 0.7mm, 22, Yellow), 22G (25mm, 0.9mm, 36, Blue), 20G (32mm, 1mm, 58, Pink), 18G (32mm, 1.2mm, 90, Green), 17G (45mm, 1.5mm, 120, White), 16G (45mm, 1.8mm, 172, Grey), 14G (45mm, 2mm, 208, Orange).

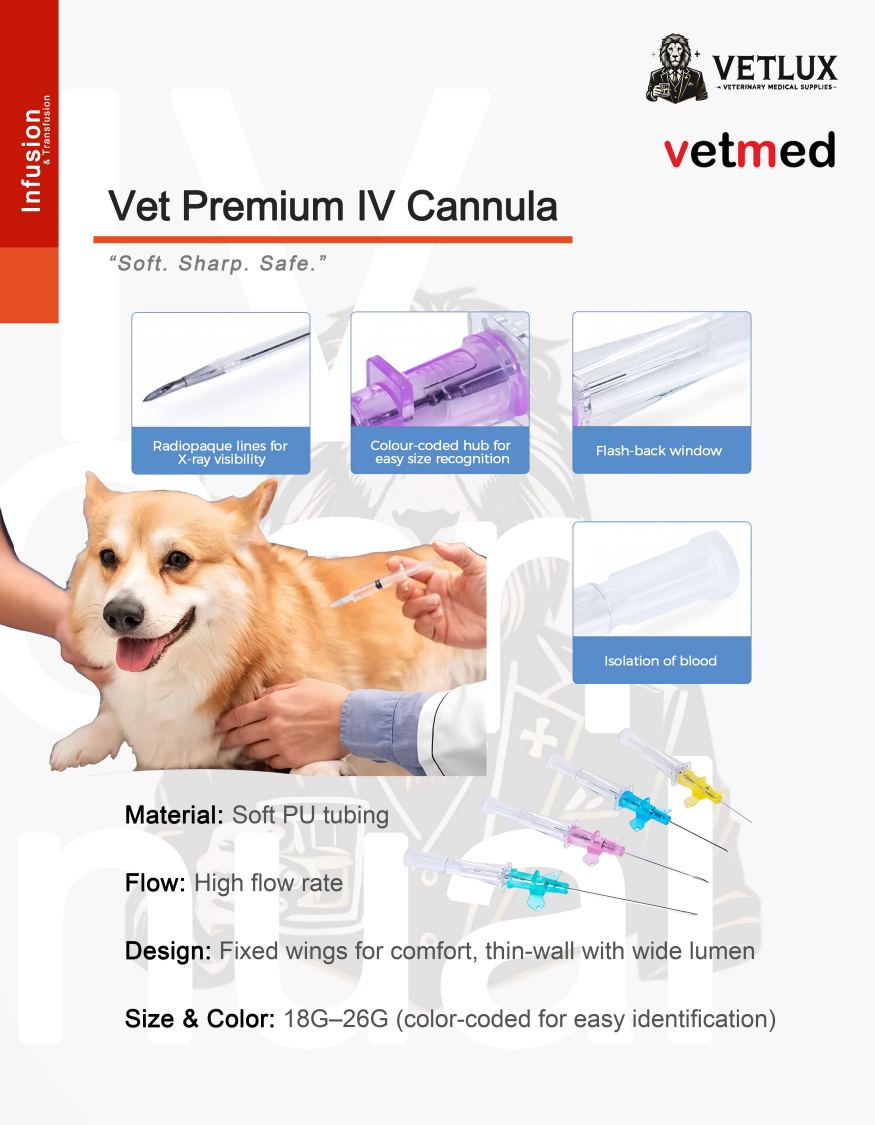

Design Features: Radiopaque lines (X-ray visibility), color-coded hub (easy size recognition), flash-back window, blood isolation, fixed wings (comfort), thin-wall with wide lumen (high flow rate).

Needle Design: Back Cut Bevel (extremely sharp, smooth insertion).

Applications: Essential for veterinary clinics/hospitals to deliver fluids, medications, and perform diagnostic sampling via IV access in animals of all sizes.

Usage Steps:

Prior to venipuncture: Position needle under skin.

After needle advanced into vein: Confirm flashback, advance catheter (needle remains in vein).

Catheter advanced into vein: Secure catheter, remove needle.
