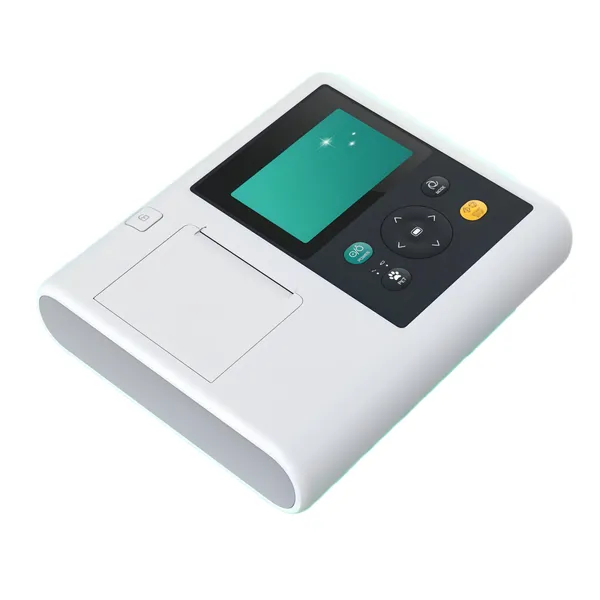

Vet ECG Machine

Vetlux VLEMCO1 3-Channel Vet ECG Machine

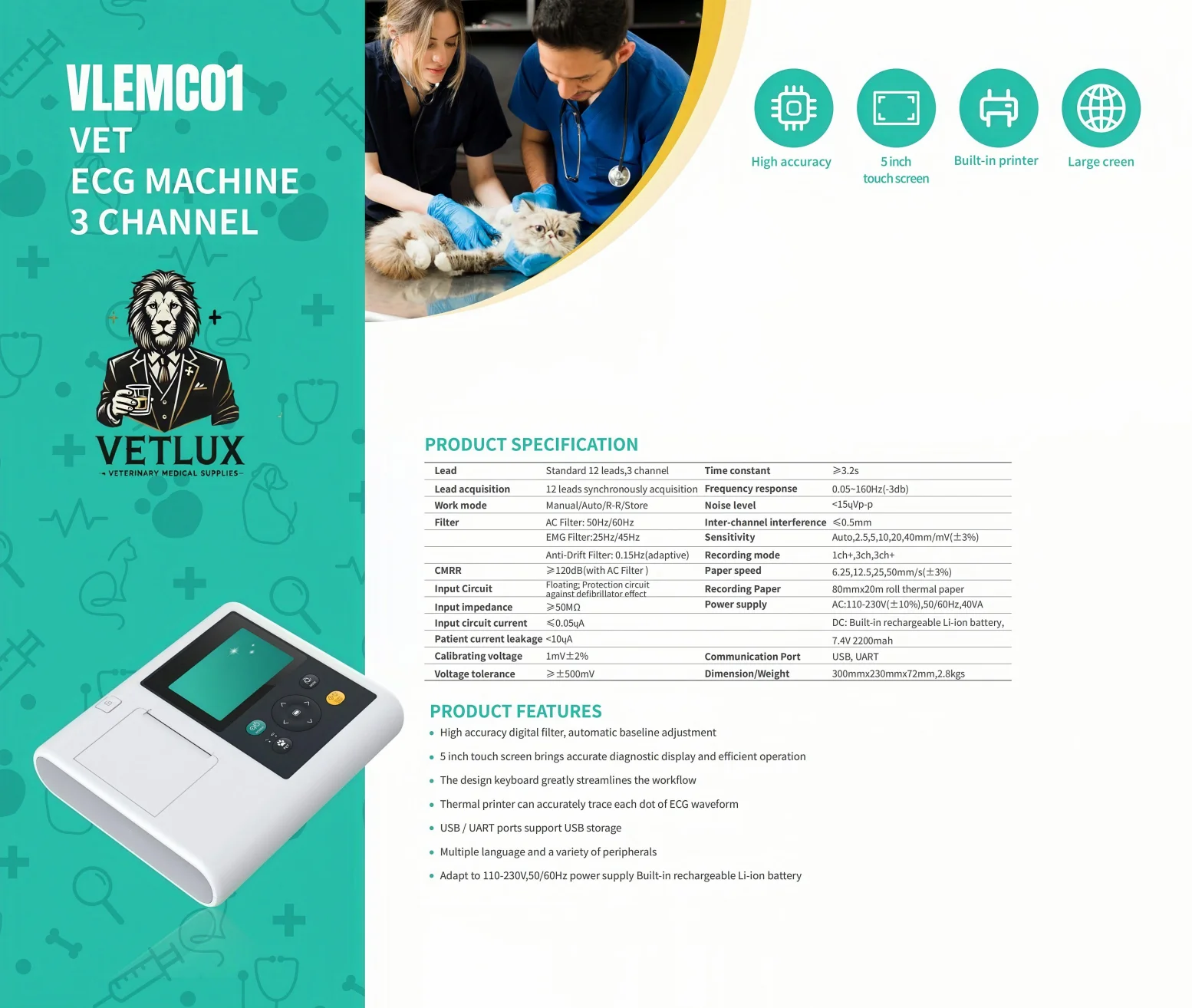

Product Specification

Lead & Acquisition: Supports standard 12 leads (3-channel), with 12 leads acquired synchronously.

Performance Metrics: Time constant ≥3.2s, frequency response 0.05-160Hz (-3db), noise level <15μVp-p, inter-channel interference <0.5mm, sensitivity adjustable (Auto/2.5-40mm/mV, ±3%).

Recording Capability: Recording modes include 1ch, 3ch, 3ch+; paper speed ranges from 6.25-50mm/s (±3%); uses 80mm×20m roll thermal paper.

Power & Dimensions: AC input 110-230V (±10%), DC built-in 7.4V 2200mAh Li-ion battery; size 300mm×230mm×72mm, weight 2.8kgs.

Product Features

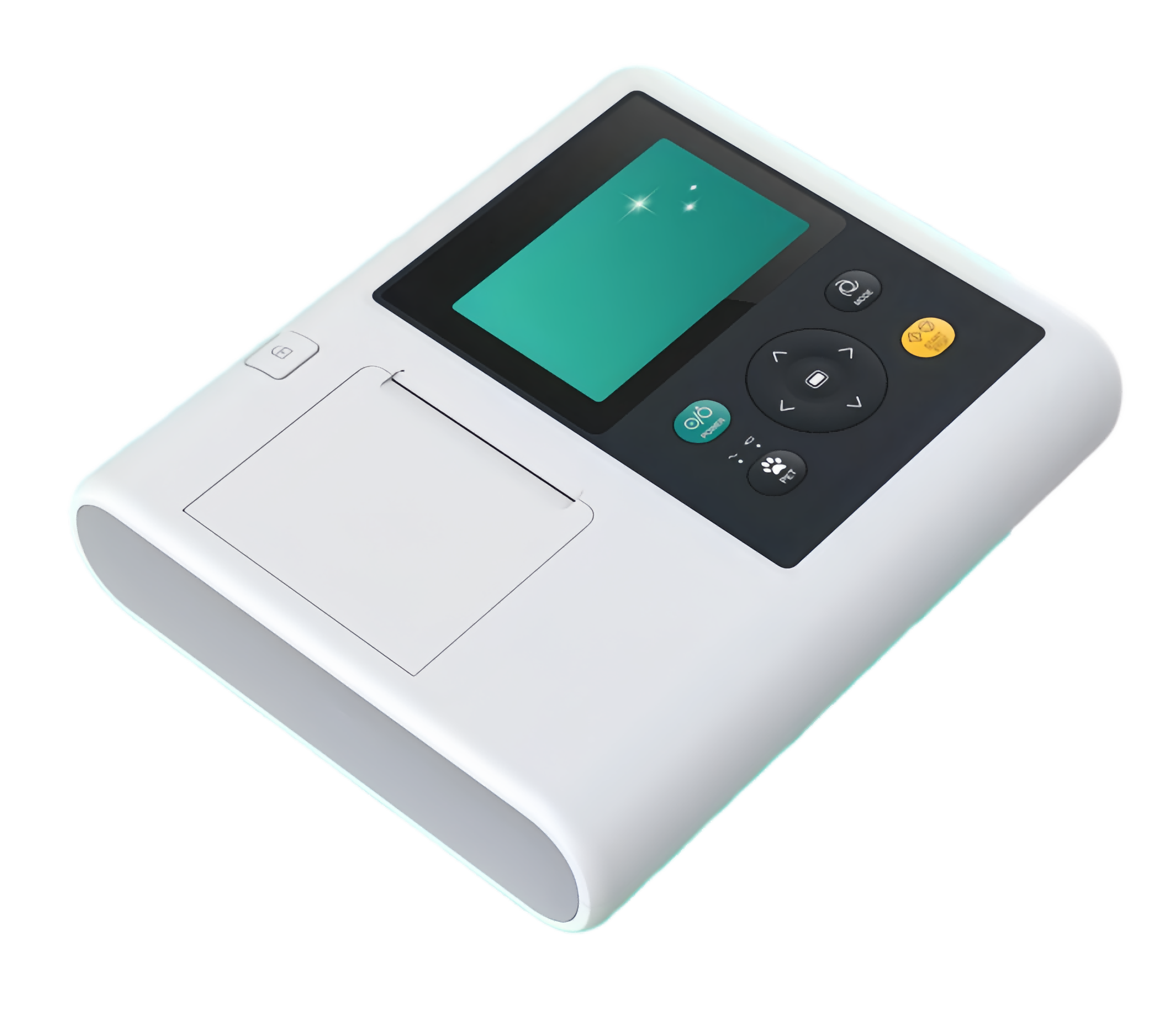

Accuracy & Operation: Equipped with high-accuracy digital filter and automatic baseline adjustment; 5-inch touch screen enables precise diagnostic display and efficient workflow, complemented by a streamlined design keyboard.

Printing & Connectivity: Built-in thermal printer accurately traces ECG waveforms; USB/UART ports support USB storage for data management.

Versatility & Adaptability: Offers multiple language options and compatibility with various peripherals; adapts to 110-230V power supply, with a rechargeable battery for flexible use in veterinary clinical environments.
